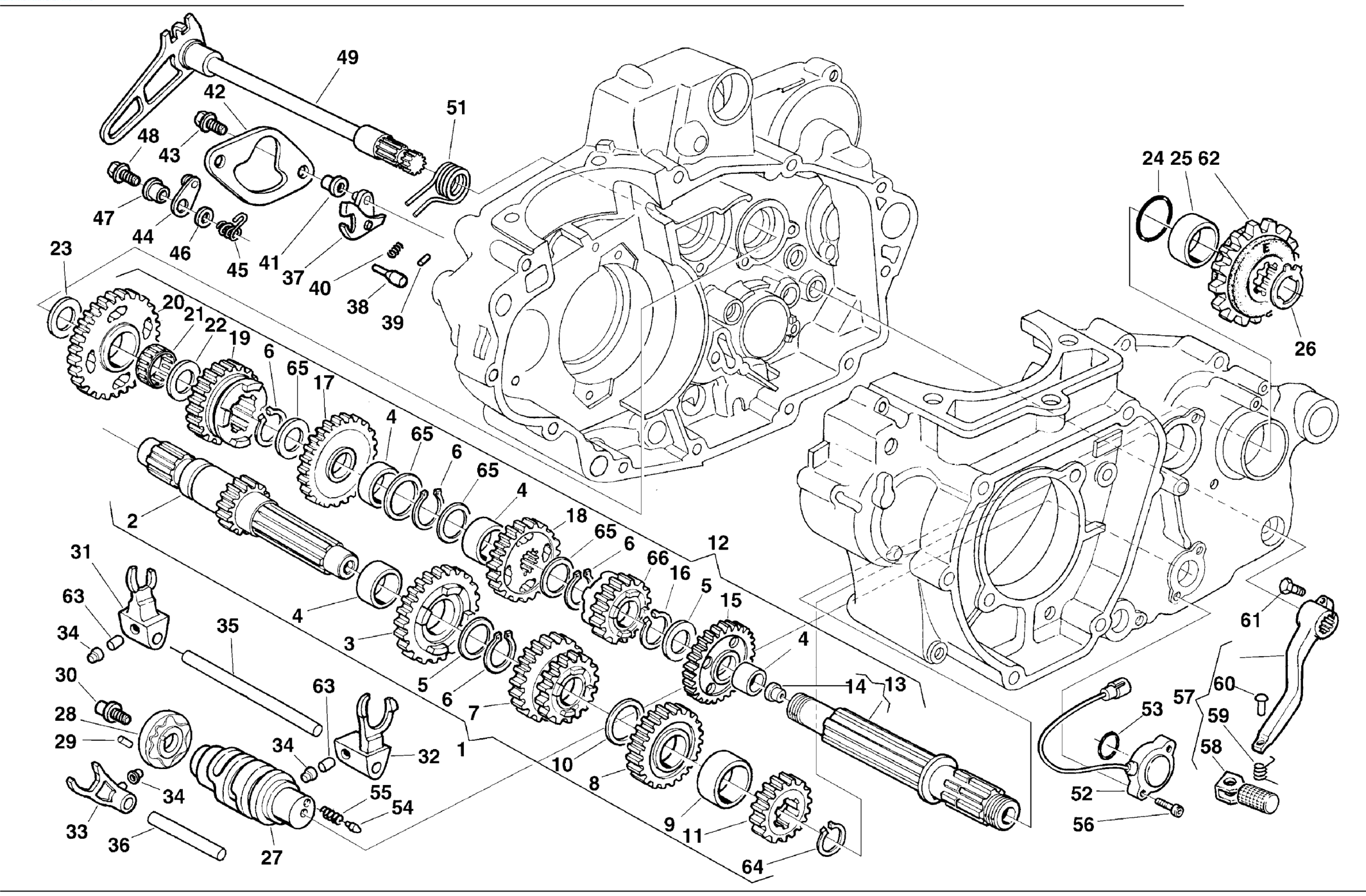

No. Code Name Reference Price
No. Code Name reference Price
1 8000A3511 Main shaft assy (450-510) 297.05
2 8000A3512 Main shaft (Z=14) (450-510) 104.19
3 800088244 Gear speed (Z=25) 63.37
4 800063822 Bushing 12.54
5 8D0036022 Washer (0,5 mm) 13.57
6 800031772 Stop ring 6.33
7 8000A3972 Main shaft 3rd- 4th gear (Z=18 Z=23) 64.06
8 800088246 Main shaft 6th gear (Z=27) 63.71
9 8A0061261 Bush 17.25
10 8B0036023 Washer 4.03
11 800088247 Main shaft 2nd gear (Z=18) 24.38
12 8000A3971 Layshaft compl. 483.92
13 8000A1302 Layshaft 125.12
14 800057196 Plug 13.57
15 8000A1918 Secondary shaft 2nd gear (Z=29) 82.34
16 66N021211 Stop ring 0.23
17 800088254 Secondary shaft 4th gear (Z=25) 34.04
18 8000A3970 Secondary shaft 3rd gear (Z=24) 33.01
19 8000A1920 Secondary shaft 5th gear (Z=23) 54.51
20 8000A1921 Gear 1st speed (Z=28) 33.35
21 800022373 Needle cage ( 6.10
22 8G0007989 Washer( 1,0m m) 13.57
23 8E0032069 Washer 13.57
24 800041693 O-Ring 0.23
25 800086953 Spacer 58.42
26 66N021211 Stop ring 0.23
27 8000A1316 Driving shaft gearbox forks 67.97
28 8A0097739 Drum 48.99
29 800038520 Roller 4.83
30 800098149 Screw 14.26
31 8A0086980 Fork (1st-4st) 42.78
32 8A0048127 Fork (2nd-3rd) 42.78
33 800099738 Gear shift fork (MTM) (5 39.68
34 800071010 Wheel 13.34
35 800038711 Pin (L=96 mm) 17.14
36 800038712 Pin (L=57 mm) 11.16
37 800087299 Sprocket 55.43
38 800071007 Click 7.59
39 800071008 Push rod 8.40
40 800071009 Spring 5.06
41 800071010 Wheel 13.34
42 800099739 Plate 12.31
43 Z00062726 SCREW TEF M6X1X14 CH8 0.12
44 800085495 Click 0.00
45 8000A1748 Spring 13.80
46 800086107 Washer 3.45
47 800085493 Bushing 9.20
48 Z00062726 SCREW TEF M6X1X14 CH8 0.12
49 800091559 Gearbox pedal shaft assy 45.54
51 800072826 Spring 3.57
52 8000A0579 Idle trasponder assy 35.19
53 8A0042700 O-Ring 2.19
54 800042676 Push rod 1.27
55 800042677 Spring 5.06
56 Z00067997 SCREW TEF M5X0.8X12 CH8 0.12
57 8000A3488 PEDAL, GEAR CHANGE 48.99
58 8A00A3485 ARM, GEAR SHIFT LEVER 18.63
59 800070216 Spring 1.73
60 800099744 RIVET 6X22 UNI 748 3.11
61 Z00062728 Screw, M6-L20 0.12
62 800063828 Pinion Z=13 (TE-TXC) 25.76
62 800063830 Pinion ( Z = 15) 48.19
62 800063829 Pinion (Z = 14) DI SERIE 26.80
63 800038728 Roller 1.15
65 800088255 Washer 3.34
64 66N021206 CIRCLIP 25 MM 0.46
66 8000A1919 Secondary shaft 6th gear (Z=22) 65.21
Add to basket
8000A3511 Main shaft assy (450-510) €297.05
Add to basket
8000A3512 Main shaft (Z=14) (450-510) €104.19
Add to basket
800088244 Gear speed (Z=25) €63.37
Add to basket
800063822 Bushing €12.54
Add to basket
8D0036022 Washer (0,5 mm) €13.57
Add to basket
800031772 Stop ring €6.33
Add to basket
8000A3972 Main shaft 3rd- 4th gear (Z=18 Z=23) €64.06
Add to basket
800088246 Main shaft 6th gear (Z=27) €63.71
Add to basket
8A0061261 Bush €17.25
Add to basket
8B0036023 Washer €4.03
Add to basket
800088247 Main shaft 2nd gear (Z=18) €24.38
Add to basket
8000A3971 Layshaft compl. €483.92
Add to basket
8000A1302 Layshaft €125.12
Add to basket
800057196 Plug €13.57
Add to basket
8000A1918 Secondary shaft 2nd gear (Z=29) €82.34
Add to basket
66N021211 Stop ring €0.23
Add to basket
800088254 Secondary shaft 4th gear (Z=25) €34.04
Add to basket
8000A3970 Secondary shaft 3rd gear (Z=24) €33.01
Add to basket
8000A1920 Secondary shaft 5th gear (Z=23) €54.51
Add to basket
8000A1921 Gear 1st speed (Z=28) €33.35
Add to basket
800022373 Needle cage ( €6.10
Add to basket
8G0007989 Washer( 1,0m m) €13.57
Add to basket
8E0032069 Washer €13.57
Add to basket
800041693 O-Ring €0.23
Add to basket
800086953 Spacer €58.42
Add to basket
66N021211 Stop ring €0.23
Add to basket
8000A1316 Driving shaft gearbox forks €67.97
Add to basket
8A0097739 Drum €48.99
Add to basket
800038520 Roller €4.83
Add to basket
800098149 Screw €14.26
Add to basket
8A0086980 Fork (1st-4st) €42.78
Add to basket
8A0048127 Fork (2nd-3rd) €42.78
Add to basket
800099738 Gear shift fork (MTM) (5 €39.68
Add to basket
800071010 Wheel €13.34
Add to basket
800038711 Pin (L=96 mm) €17.14
Add to basket
800038712 Pin (L=57 mm) €11.16
Add to basket
800087299 Sprocket €55.43
Add to basket
800071007 Click €7.59
Add to basket
800071008 Push rod €8.40
Add to basket
800071009 Spring €5.06
Add to basket
800071010 Wheel €13.34
Add to basket
800099739 Plate €12.31
Add to basket
Z00062726 SCREW TEF M6X1X14 CH8 €0.12
Add to basket
800085495 Click €0.00
Add to basket
8000A1748 Spring €13.80
Add to basket
800086107 Washer €3.45
Add to basket
800085493 Bushing €9.20
Add to basket
Z00062726 SCREW TEF M6X1X14 CH8 €0.12
Add to basket
800091559 Gearbox pedal shaft assy €45.54
Add to basket
800072826 Spring €3.57
Add to basket
8000A0579 Idle trasponder assy €35.19
Add to basket
8A0042700 O-Ring €2.19
Add to basket
800042676 Push rod €1.27
Add to basket
800042677 Spring €5.06
Add to basket
Z00067997 SCREW TEF M5X0.8X12 CH8 €0.12
Add to basket
8000A3488 PEDAL, GEAR CHANGE €48.99
Add to basket
8A00A3485 ARM, GEAR SHIFT LEVER €18.63
Add to basket
800070216 Spring €1.73
Add to basket
800099744 RIVET 6X22 UNI 748 €3.11
Add to basket
Z00062728 Screw, M6-L20 €0.12
Add to basket
800063828 Pinion Z=13 (TE-TXC) €25.76
800063830 Pinion ( Z = 15) €48.19
800063829 Pinion (Z = 14) €26.80
Add to basket
800038728 Roller €1.15
Add to basket
800088255 Washer €3.34
Add to basket
66N021206 CIRCLIP 25 MM €0.46
Add to basket
8000A1919 Secondary shaft 6th gear (Z=22) €65.21
