Products
* All prices are client prices excl. VAT
Value in currencies other than in Euro (€) are only an indication.

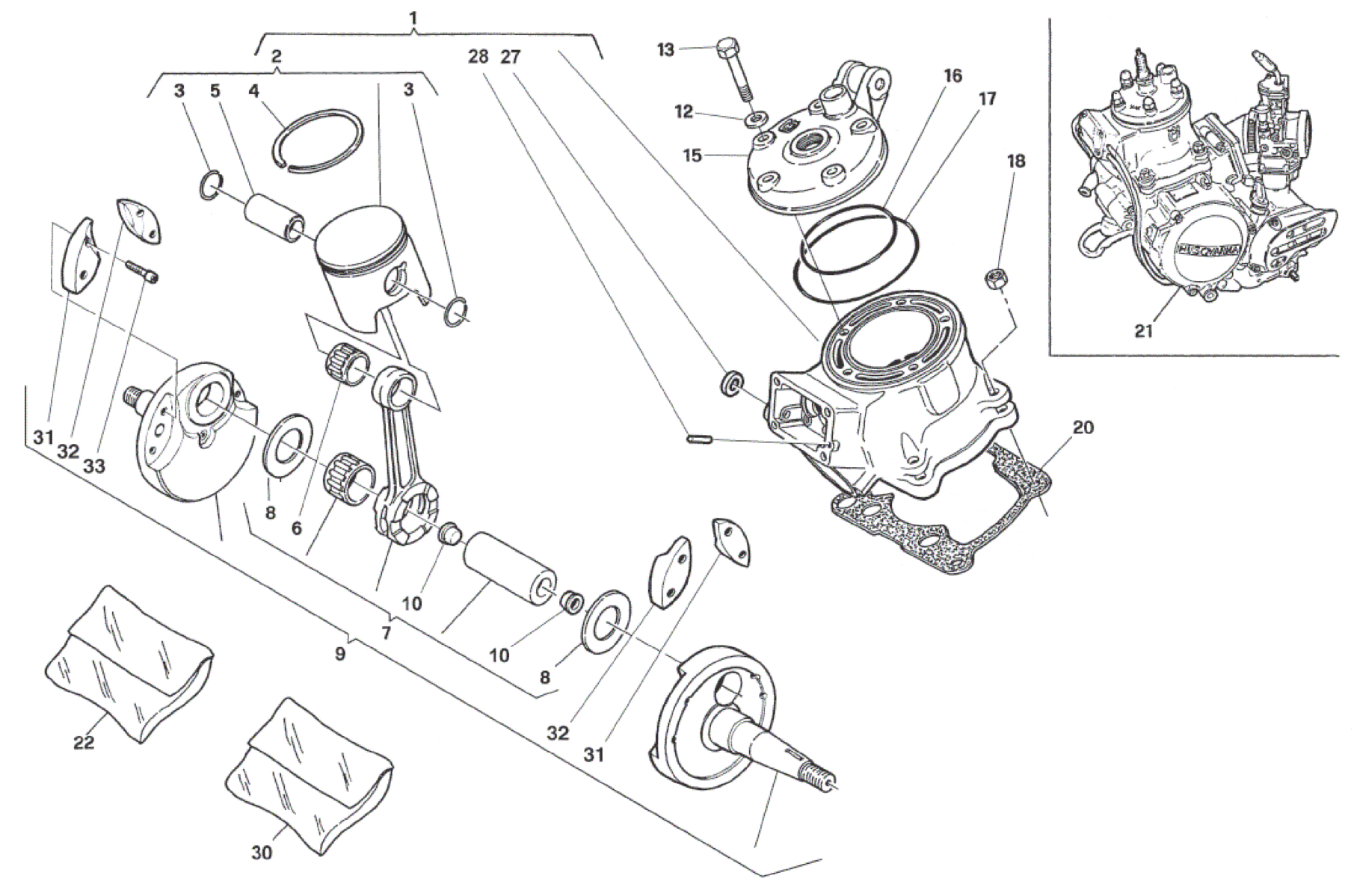

| No. | Code | Name | reference | Price | ||
|---|---|---|---|---|---|---|
| 1 | H8000B0471 | Cilynder assy | € 0.00 | |||
| 2 | H800099749/1 | Compl. piston A-B (ø 53,940÷53,950 mm) | € 0.00 | |||
| 2 | H800099749/2 | Compl. piston C-D (ø 53,950÷53,960 mm) | € 0.00 | |||
| 2 | H800099749/3 | Compl. piston E-F (ø 53,960÷53,970 mm) | € 0.00 | |||
| 3 | H800010314 | Circlip | € 0.00 | |||
| 4 | H8000A4506 | Circlip | € 0.00 | |||
| 5 | H800083066 | Gudgeon | € 0.00 | |||
| 6 | H800083071 | Needle bearing (ø15xø19x17,3 mm) | € 0.00 | |||
| 7 | H800088810 | Connecting rod compl. | € 0.00 | |||
| 8 | H800050629 | Washer | € 0.00 | |||
| 9 | H8000A8443 | Crankshafta ssy | € 0.00 | |||
| 10 | H800057196 | Plug | € 0.00 | |||
| 12 | H800039335 | Washer | € 0.00 | |||
| 13 | HZK0069056 | SCREW TFE M8X1.25X35 CH12 | € 0.00 | |||
| 15 | H800083070 | Cylinderh ead | € 0.00 | |||
| 16 | H800039630 | O Ring | € 0.00 | |||
| 17 | H800070635 | O Ring | € 0.00 | |||
| 18 | HZ00043928 | Nut | € 0.00 | |||
| 20 | H800083068 | Gasket (0,3 mm) | € 0.00 | |||
| 20 | H8D0083068 | Gasket( 0,8m m) | € 0.00 | |||
| 20 | H8B0083068 | Gasket ( 0,5 mm) | € 0.00 | |||
| 20 | H8A0083068 | Gasket (0,4 mm) | € 0.00 | |||
| 21 | H8000H0409 | Engine assy | WR125/09 | € 0.00 | ||
| 21 | H8000H0463 | ENGINE | CR125/09 | € 0.00 | ||
| 22 | H8000A8986 | GASKET SET, ENGINE | € 0.00 | |||
| 27 | H800064296 | Seal ring (ø8ø16Th.5) | € 0.00 | |||
| 28 | H800047773 | Needle | € 0.00 | |||
| 30 | H800094852 | Engines ealr ings et | € 0.00 | |||
| 31 | H8000A8446 | Insert | € 0.00 | |||
| 32 | H8000A8447 | Insert | € 0.00 | |||
| 33 | H60ND02486 | SCREW | € 0.00 |
| Add to basket | ||||
|---|---|---|---|---|
| H8000B0471 | CYLINDER | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800099749/1 | PISTON ASSY A-B 53.940-53.950 | € 0.00 | ||
| H800099749/2 | PISTON ASSY C-D 53.950-53.960 | € 0.00 | ||
| H800099749/3 | PISTON ASSY E-F 53.960-53.970 | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800010314 | CLIP, PISTON PIN | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H8000A4506 | PISTON RING | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800083066 | PISTON PIN | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800083071 | ROLLER BEARING 19-15-17 | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800088810 | ROD, CONNECTING | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800050629 | WASHER 41X24.05 | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H8000A8443 | CRANKSHAFT | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800057196 | PLUG 12X6X10 | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800039335 | WASHER 15X8.6X2 | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| HZK0069056 | SCREW | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800083070 | Cylinderh ead | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800039630 | O-RING CYLINDER HEAD | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800070635 | O-RING CYLINDER HEAD | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| HZ00043928 | NUT | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800083068 | GASKET, CYLINDER BASE 0.3 MM | € 0.00 | ||
| H8D0083068 | Gasket( 0,8m m) | € 0.00 | ||
| H8B0083068 | GASKET, CYLINDER BASE 0.5 MM | € 0.00 | ||
| H8A0083068 | Gasket (0,4 mm) | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H8000H0409 | Engine assy | € 0.00 | ||
| H8000H0463 | ENGINE | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H8000A8986 | GASKET SET, ENGINE | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800064296 | OIL SEAL 8X16X5 | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800047773 | ROLLER | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H800094852 | Engines ealr ings et | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H8000A8446 | INSERT | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H8000A8447 | INSERT | € 0.00 | ||
| Add to basket | ||||
|---|---|---|---|---|
| H60ND02486 | SCREW | € 0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H8000B0471 | CYLINDER | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800099749/1 | PISTON ASSY A-B 53.940-53.950 | €0.00 | ||
| H800099749/2 | PISTON ASSY C-D 53.950-53.960 | €0.00 | ||
| H800099749/3 | PISTON ASSY E-F 53.960-53.970 | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800010314 | CLIP, PISTON PIN | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H8000A4506 | PISTON RING | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800083066 | PISTON PIN | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800083071 | ROLLER BEARING 19-15-17 | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800088810 | ROD, CONNECTING | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800050629 | WASHER 41X24.05 | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H8000A8443 | CRANKSHAFT | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800057196 | PLUG 12X6X10 | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800039335 | WASHER 15X8.6X2 | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| HZK0069056 | SCREW | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800083070 | Cylinderh ead | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800039630 | O-RING CYLINDER HEAD | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800070635 | O-RING CYLINDER HEAD | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| HZ00043928 | NUT | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800083068 | GASKET, CYLINDER BASE 0.3 MM | €0.00 | ||
| H8D0083068 | Gasket( 0,8m m) | €0.00 | ||
| H8B0083068 | GASKET, CYLINDER BASE 0.5 MM | €0.00 | ||
| H8A0083068 | Gasket (0,4 mm) | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H8000H0409 | Engine assy | €0.00 | ||
| H8000H0463 | ENGINE | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H8000A8986 | GASKET SET, ENGINE | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800064296 | OIL SEAL 8X16X5 | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800047773 | ROLLER | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H800094852 | Engines ealr ings et | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H8000A8446 | INSERT | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H8000A8447 | INSERT | €0.00 | ||
| Add to claim | ||||
|---|---|---|---|---|
| H60ND02486 | SCREW | €0.00 | ||
