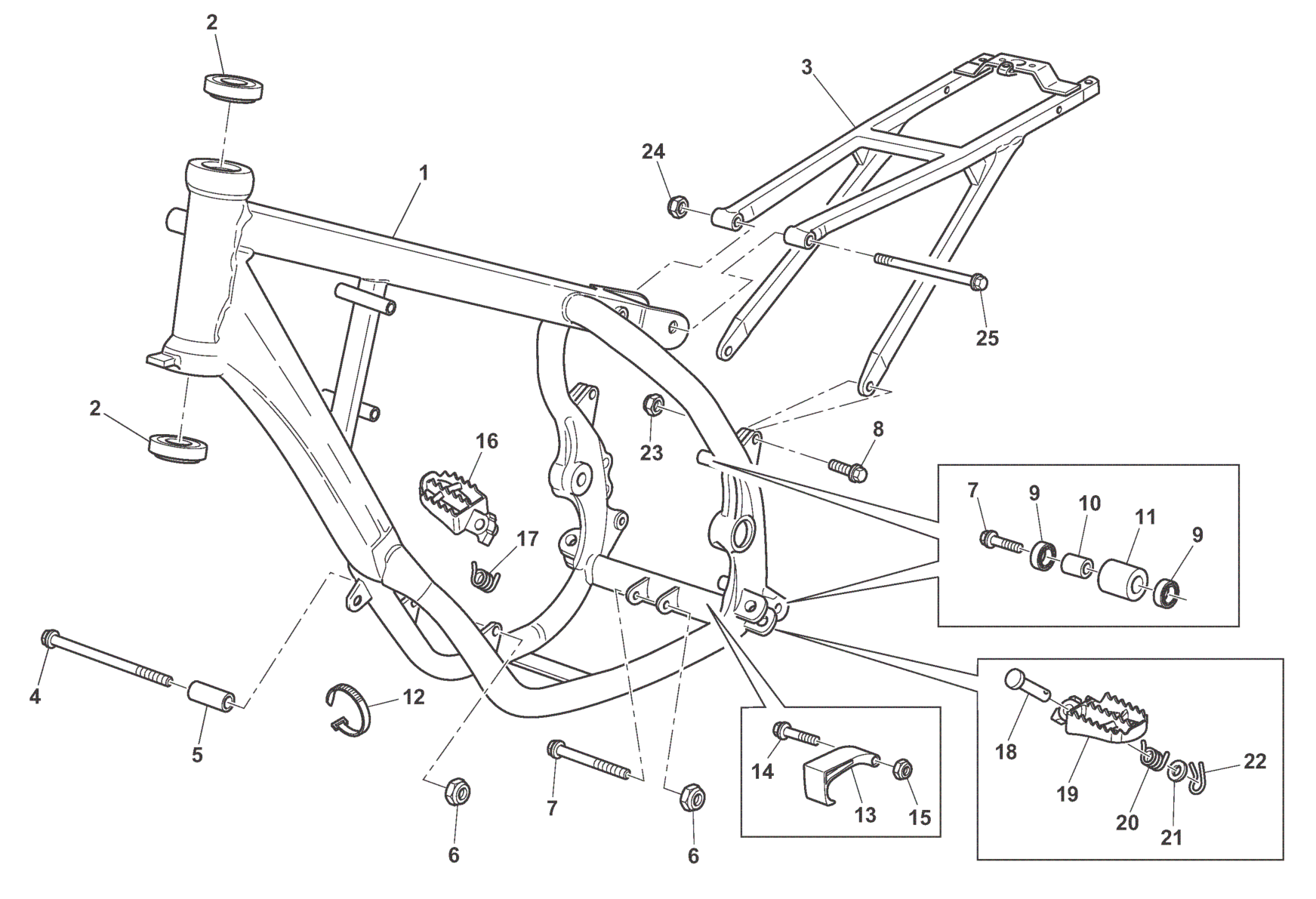

1 2 3 4 5 6 7 8 9 10 11 12 13 14 16 17 18 19 20 21 22 25 9 2 6 15 23 24 7

Products

* All prices are VAT excl.
Value in currencies other than in Euro (€) are only an indication.

No. Code Name Price
No. Code Name Price
1 8000H2819 Front frame 996.02
2 8000H3469 Bearing 11.85
3 8000H2820 Rear frame side 207.12
4 ZB00B2684 Screw 1.96
5 8000H3929 Front spacer 1.50
6 Z00043928 Nut 1.04
7 ZA0091697 Screw 1.04
8 Z00069056 SCREW TEF M8X1.25X20 CH12 0.81
9 800063312 Bearing(ø8xØ22x7mm) 11.73
10 8A0059434 SPACER 1.04
11 8AA059433 ROLLER, CHAIN TENSIONER 3.68
12 800050005 Split ring 0.35
13 8000H3005 Chain guide 6.67
14 60ND02558 Screw 0.23
16 80A089953 R.H. foot-rest 46.92
17 800096908 R.H. spring 1.50
18 Y00073140 PIN, FOOTREST 2.53
19 80A089962 L.H. foot-rest 46.92
20 800096907 L.H. spring 1.50
21 ZA0001815 WASHER 16X10.5X1 0.12
22 64ND20068 PIN, COTTER 1.8X18 0.58
25 8000H3822 Screw 1.38
15 Z00043928 Nut 1.04
23 Z00043928 Nut 1.04
24 Z00043928 Nut 1.04
Add to basket
8000H2819 Front frame €996.02
Add to basket
8000H3469 Bearing €11.85
Add to basket
8000H2820 Rear frame side €207.12
Add to basket
ZB00B2684 Screw €1.96
Add to basket
8000H3929 Front spacer €1.50
Add to basket
Z00043928 Nut €1.04
Add to basket
ZA0091697 Screw €1.04
Add to basket
Z00069056 SCREW TEF M8X1.25X20 CH12 €0.81
Add to basket
800063312 Bearing(ø8xØ22x7mm) €11.73
Add to basket
8A0059434 SPACER €1.04
Add to basket
8AA059433 ROLLER, CHAIN TENSIONER €3.68
Add to basket
800050005 Split ring €0.35
Add to basket
8000H3005 Chain guide €6.67
Add to basket
60ND02558 Screw €0.23
Add to basket
80A089953 R.H. foot-rest €46.92
Add to basket
800096908 R.H. spring €1.50
Add to basket
Y00073140 PIN, FOOTREST €2.53
Add to basket
80A089962 L.H. foot-rest €46.92
Add to basket
800096907 L.H. spring €1.50
Add to basket
ZA0001815 WASHER 16X10.5X1 €0.12
Add to basket
64ND20068 PIN, COTTER 1.8X18 €0.58
Add to basket
8000H3822 Screw €1.38
Add to basket
Z00043928 Nut €1.04
Add to basket
Z00043928 Nut €1.04
Add to basket
Z00043928 Nut €1.04
