No. Code Name Reference Price
No. Code Name reference Price

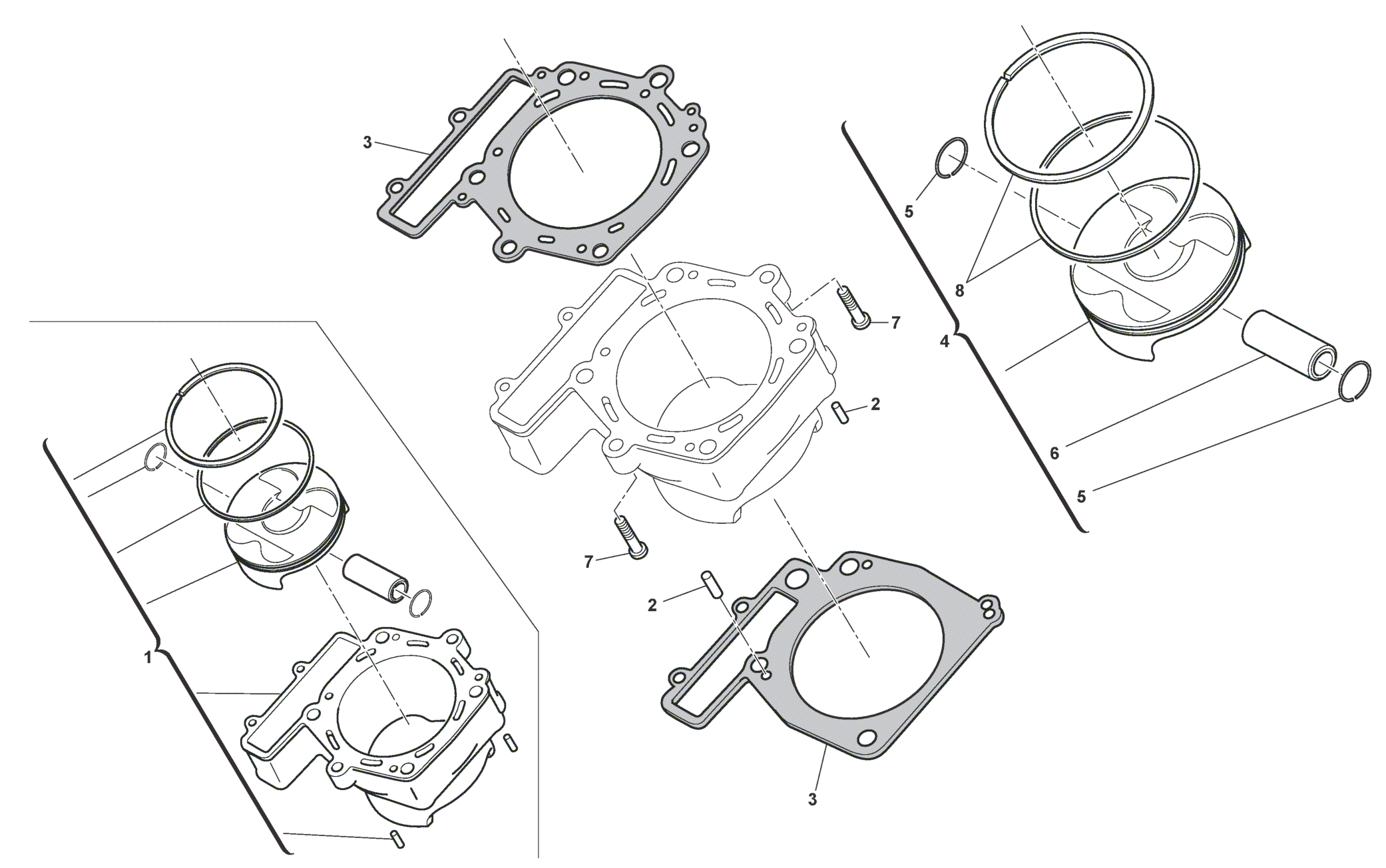

1 H7722572 Cylinder assy group 1 (480) SMR511 € 0.00
1 H7722571 CYLINDER ASSY 1 SMR449 € 0.00
1 H8526429 CYLINDER ASSY 2 SMR449 € 0.00
1 H7722613 Cylinder assy group 2 (480) SMR511 € 0.00
2 H9900379 PIN, DOWEL 5X10 € 0.00
3 H7722589 Gasket kit (480) SMR511 € 0.00
3 H7715466 GASKET SET, CYLINDER SMR449 € 0.00
4 H7715432 PISTON ASSY 1 SMR449 € 0.00
4 H7722586 Piston kit complete group 2 (480) SMR511 € 0.00
4 H7719431 PISTON ASSY 2 SMR449 € 269.70
4 H8526428 Piston kit complete group 1 (480) SMR511 € 0.00
5 H8520291 CLIP PISTON PIN € 0.00
6 H7700555 PIN, PISTON 20X50 MM SMR449 € 0.00
6 H7722569 Pin D=20x46 EB020-086 SMR511 € 0.00
7 H9906626 SCREW € 0.00
8 H8538998 PISTON RING SET SMR449 € 0.00
8 H8538999 PISTON RINGS KIT D.101 mm SMR511 € 0.00
Add to basket
H7722572 CYLINDER WITH PISTON KIT GROUP € 0.00
H7722571 CYLINDER ASSY 1 € 0.00
H8526429 CYLINDER WITH PISTON KIT GROUP € 0.00
H7722613 Cylinder assy group 2 (480) € 0.00
Add to basket
H9900379 NEEDLE PIN DIN 5402-3 B 5X10 G € 0.00
Add to basket
H7722589 Gasket kit (480) € 0.00
H7715466 GASKET KIT CYLINDER (450) € 0.00
Add to basket
H7715432 PISTON KIT COMPLETE GROUP 1 (4 € 0.00
H7722586 PISTON KIT COMPLETE GROUP 2 (4 € 0.00
H7719431 PISTON KIT COMPLETE GROUP 2 (4 € 269.70
H8526428 PISTON KIT COMPLETE GROUP 1 (4 € 0.00
Add to basket
H8520291 CIRCLIP 20X1,6 € 0.00
Add to basket
H7700555 PISTON PIN D=20X50 € 0.00
H7722569 PISTON PIN D=20X46 EB020-086 € 0.00
Add to basket
H9906626 CYLINDER HEAD SCREW DIN 6912 M € 0.00
Add to basket
H8538998 PISTON RING SET € 0.00
H8538999 PISTON RINGS KIT D.101 mm € 0.00
Add to claim
H7722572 CYLINDER WITH PISTON KIT GROUP €0.00
H7722571 CYLINDER ASSY 1 €0.00
H8526429 CYLINDER WITH PISTON KIT GROUP €0.00
H7722613 Cylinder assy group 2 (480) €0.00
Add to claim
H9900379 NEEDLE PIN DIN 5402-3 B 5X10 G €0.00
Add to claim
H7722589 Gasket kit (480) €0.00
H7715466 GASKET KIT CYLINDER (450) €0.00
Add to claim
H7715432 PISTON KIT COMPLETE GROUP 1 (4 €0.00
H7722586 PISTON KIT COMPLETE GROUP 2 (4 €0.00
H7719431 PISTON KIT COMPLETE GROUP 2 (4 €269.70
H8526428 PISTON KIT COMPLETE GROUP 1 (4 €0.00
Add to claim
H8520291 CIRCLIP 20X1,6 €0.00
Add to claim
H7700555 PISTON PIN D=20X50 €0.00
H7722569 PISTON PIN D=20X46 EB020-086 €0.00
Add to claim
H9906626 CYLINDER HEAD SCREW DIN 6912 M €0.00
Add to claim
H8538998 PISTON RING SET €0.00
H8538999 PISTON RINGS KIT D.101 mm €0.00
