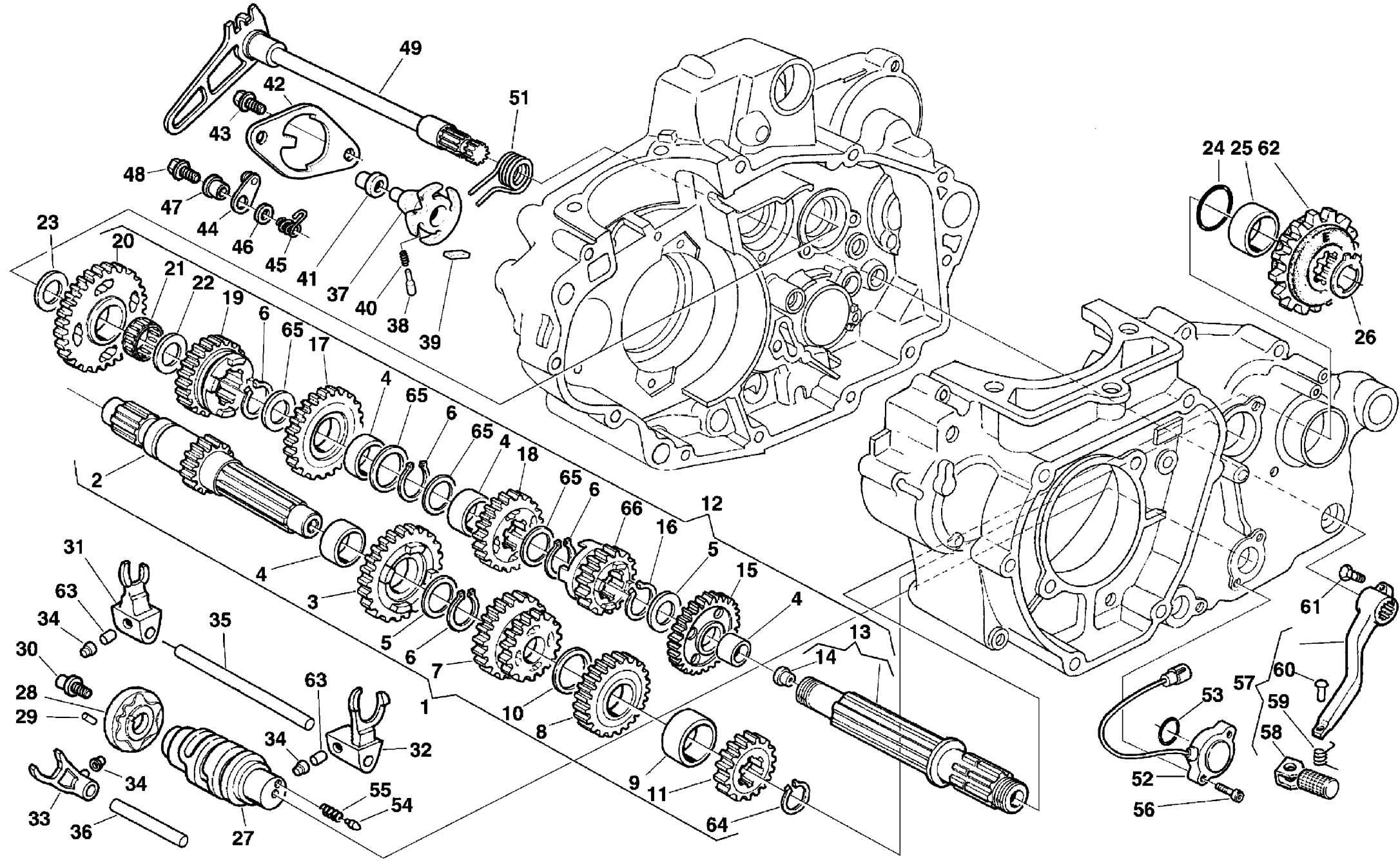

No. Code Name Reference Price
No. Code Name reference Price
1 H8000A3511 Main shaft assy (450-510) 400-450-510 0.00
1 H8000A4592 Main shaft assy (250-310) 250 0.00
2 H8000A1300 Main shaft (Z=14) (250-310) 250 0.00
2 H8000A3512 Main shaft (Z=14) (450-510) 400-450-510 0.00
3 H800088244 Gear speed (Z=25) 0.00
4 H800063822 Bushing E 0.00
5 H8D0036022 Washer (0,5 mm) 0.00
6 H800031772 Stop ring 7.00
7 H8000A3972 Main shaft 3rd- 4th gear (Z=18 Z=23) 0.00
8 H800088246 Main shaft 6th gear (Z=27) 0.00
9 H8A0061261 Bush 16.60
10 H8B0036023 Washer 0.00
11 H800088247 Main shaft 2nd gear (Z=18) 0.00
12 H8000A3971 Layshaft compl. 250 0.00
13 H8000A1302 Layshaft 0.00
14 H800057196 Plug 0.00
15 H8000A1918 Secondary shaft 2nd gear (Z=29) 0.00
16 H66N021211 Stop ring 0.00
17 H800088254 Secondary shaft 4th gear (Z=25) 0.00
18 H8000A3970 Secondary shaft 3rd gear (Z=24) 0.00
19 H8000A1920 Secondary shaft 5th gear (Z=23) 0.00
20 H8000A1921 Gear 1st speed (Z=28) 0.00
21 H800022373 Needle cage ( 0.00
22 H8G0007989 Washer( 1,0m m) 12.30
23 H8G0032069 Washer 0.00
24 H800041693 O-Ring 0.20
25 H800086953 Spacer 55.88
26 H66N021211 Stop ring 0.00
27 H8000A1316 Driving shaft gearbox forks 0.00
28 H8A0097739 Drum 0.00
29 H800038520 Roller 0.00
30 H800098149 Screw 0.00
31 H8A0086980 Fork (1st-4st) 0.00
32 H8A0048127 Fork (2nd-3rd) 47.70
33 H800099738 Gear shift fork (MTM) (5 0.00
34 H800071010 Wheel 0.00
35 H800038711 Pin (L=96 mm) 0.00
36 H800038712 Pin (L=57 mm) 0.00
37 H800087299 Sprocket 0.00
38 H800071007 Click 0.00
39 H800071008 Push rod 0.00
40 H800071009 Spring 0.00
41 H800071010 Wheel 0.00
42 H800099739 Plate 0.00
43 HZ00062726 SCREW TEF M6X1X14 CH8 1.10
44 H800085495 Click 0.00
45 H8000A1748 Spring 0.00
46 H800086107 Washer 0.00
47 H800085493 Bushing 0.00
48 HZ00062726 SCREW TEF M6X1X14 CH8 1.10
49 H800091559 Gearbox pedal shaft assy 0.00
51 H800072826 Spring 0.00
52 H8000A4511 Idle trasponder assy 0.00
53 H8A0042700 O-Ring 0.00
54 H800042676 Push rod 0.00
55 H800042677 Spring 0.00
56 HZ00067997 SCREW TEF M5X0.8X12 CH8 0.00
57 H8000A3488 PEDAL, GEAR CHANGE 54.40
58 H8A00A3485 ARM, GEAR SHIFT LEVER 0.00
58 H8000A3485 Pedal 0.00
59 H800070216 Spring 0.00
60 H800099744 RIVET 6X22 UNI 748 0.00
61 HZ00062728 Screw, M6-L20 0.20
62 H800063831 Pinion (Z = 16) 0.00
62 H800063829 Pinion (Z = 14) TE 510, SMR 0.00
62 H800063828 Pinion Z=13 (TE-TXC) TE250-450 0.00
62 H800063827 Pinion Z=12 (TE-TXC) 0.00
62 H800063830 Pinion ( Z = 15) 0.00
63 H800038728 Roller 0.00
64 H66N021206 CIRCLIP 25 MM 0.00
65 H800088255 Washer 0.00
66 H8000A1919 Secondary shaft 6th gear (Z=22) 54.80
Add to basket
H8000A3511 MAIN AXLE COMP. € 0.00
H8000A4592 MAIN AXLE COMP. € 0.00
Add to basket
H8000A1300 MAIN SHAFT T14 € 0.00
H8000A3512 MAIN SHAFT T14 € 0.00
Add to basket
H800088244 GEAR DRIVE 5TH SPEED T25 € 0.00
Add to basket
H800063822 BUSH € 0.00
Add to basket
H8D0036022 THRUST WASHER 32X25.1X0.5 MM € 0.00
Add to basket
H800031772 Stop ring € 7.00
Add to basket
H8000A3972 GEAR DRIVE 3/4TH SPEED T18/23 € 0.00
Add to basket
H800088246 DRIVEN GEAR 6TH SPEED T27 € 0.00
Add to basket
H8A0061261 BUSH 25X22 € 16.60
Add to basket
H8B0036023 Washer € 0.00
Add to basket
H800088247 GEAR DRIVE 2ND SPEED T18 € 0.00
Add to basket
H8000A3971 Layshaft compl. € 0.00
Add to basket
H8000A1302 Layshaft € 0.00
Add to basket
H800057196 PLUG 12X6X10 € 0.00
Add to basket
H8000A1918 DRIVEN GEAR 2ND SPEED T29 € 0.00
Add to basket
H66N021211 CIRCLIP 25MM DIN471 € 0.00
Add to basket
H800088254 DRIVEN GEAR 4TH SPEED T25 € 0.00
Add to basket
H8000A3970 Secondary shaft 3rd gear (Z=24) € 0.00
Add to basket
H8000A1920 DRIVEN GEAR 5TH SPEED T23 € 0.00
Add to basket
H8000A1921 DRIVEN GEAR 1ST SPEED T28 € 0.00
Add to basket
H800022373 BEARING, NEEDLE 20X24X10 € 0.00
Add to basket
H8G0007989 WASHER 28X20X1 € 12.30
Add to basket
H8G0032069 Washer € 0.00
Add to basket
H800041693 O-RING 21.95X1.78 € 0.20
Add to basket
H800086953 SPACER € 55.88
Add to basket
H66N021211 CIRCLIP 25MM DIN471 € 0.00
Add to basket
H8000A1316 Driving shaft gearbox forks € 0.00
Add to basket
H8A0097739 CAM-CHANGE DRUM € 0.00
Add to basket
H800038520 ROLLER, 4X8 € 0.00
Add to basket
H800098149 SCREW € 0.00
Add to basket
H8A0086980 SHIFT FORK 1-4 € 0.00
Add to basket
H8A0048127 SHIFT FORK 2-3 € 47.70
Add to basket
H800099738 SHIFT FORK 5-6 € 0.00
Add to basket
H800071010 ROLLER € 0.00
Add to basket
H800038711 BAR, SHIFT FORK GUIDE 96 MM € 0.00
Add to basket
H800038712 BAR, SHIFT FORK GUIDE 57.5 MM € 0.00
Add to basket
H800087299 Sprocket € 0.00
Add to basket
H800071007 PAWL € 0.00
Add to basket
H800071008 PUSH ROD € 0.00
Add to basket
H800071009 SPRING € 0.00
Add to basket
H800071010 ROLLER € 0.00
Add to basket
H800099739 PLATE € 0.00
Add to basket
HZ00062726 SCREW € 1.10
Add to basket
H800085495 STOPPER LEVER ASSY € 0.00
Add to basket
H8000A1748 SPRING € 0.00
Add to basket
H800086107 Washer € 0.00
Add to basket
H800085493 BUSH € 0.00
Add to basket
HZ00062726 SCREW € 1.10
Add to basket
H800091559 SHAFT, GEAR SHIFT € 0.00
Add to basket
H800072826 SPRING, GEARSHIFT RETURN € 0.00
Add to basket
H8000A4511 NEUTRAL SWITCH ASSY € 0.00
Add to basket
H8A0042700 O-RING 23.52X1.78 € 0.00
Add to basket
H800042676 POINT, NEUTRAL € 0.00
Add to basket
H800042677 SPRING € 0.00
Add to basket
HZ00067997 SCREW € 0.00
Add to basket
H8000A3488 PEDAL, GEAR CHANGE € 54.40
Add to basket
H8A00A3485 ARM, GEAR SHIFT LEVER € 0.00
H8000A3485 ARM € 0.00
Add to basket
H800070216 SPRING € 0.00
Add to basket
H800099744 RIVET 6X22 UNI 748 € 0.00
Add to basket
HZ00062728 SCREW TEF M6X1-CH8-L20 € 0.20
Add to basket
H800063831 SPROKET DRIVE 16T € 0.00
H800063829 SPROCKET Z14 € 0.00
H800063828 SPROCKET 13T € 0.00
H800063827 Pinion Z=12 (TE-TXC) € 0.00
H800063830 CHAIN SPROCKET Z15 € 0.00
Add to basket
H800038728 ROLLER 6X12 € 0.00
Add to basket
H66N021206 CIRCLIP 25 MM € 0.00
Add to basket
H800088255 WASHER, THRUST € 0.00
Add to basket
H8000A1919 Secondary shaft 6th gear (Z=22) € 54.80
