No.	Code	Name	Reference	Price

No.	Code	Name	reference	Price

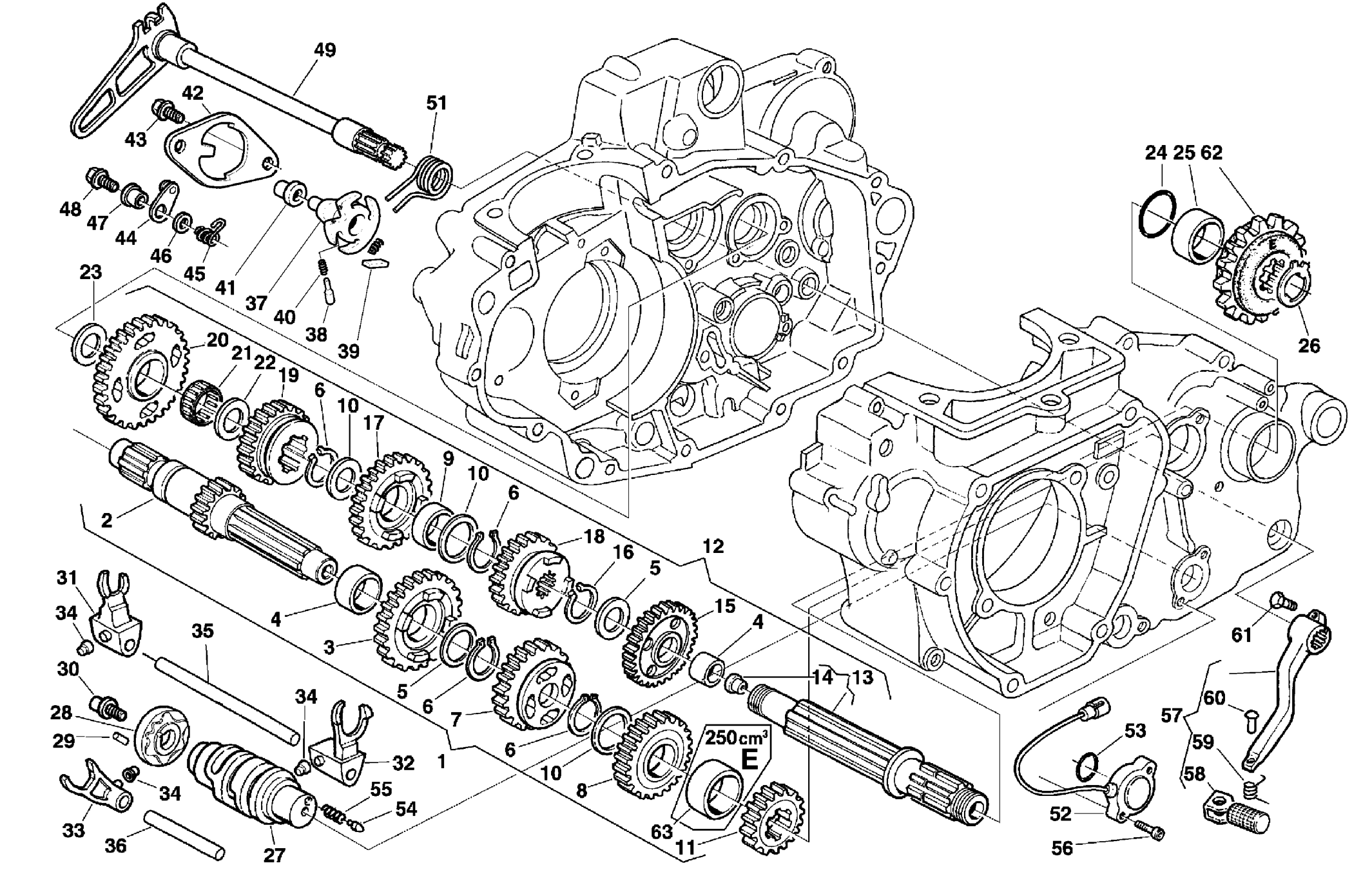

1	H8000A5721	Main shaft assy	TC 450-510	€ 0.00
1	H8000A1322	Main shaft (TC 250)	TC250	€ 0.00
2	H8000A1323	Main shaft (Z=15) (TC 250)	TC250	€ 0.00
2	H8000A4244	Main shaft (Z=15)	TC 450-510	€ 0.00
3	H800099782	Gear speed (Z=22)	TC 450-510	€ 0.00
3	H8000A1324	Gear speed (Z=22) (TC 250)	TC250	€ 0.00
4	H800063822	Bushing		€ 0.00
5	H8D0036022	Washer (0,5 mm)		€ 0.00
6	H800031772	Stop ring		€ 7.00
7	H800099783	Main shaft 3rd gear (Z=19)	TC 450-510	€ 0.00
7	H8000A1325	Main shaft 3rd gear (Z=19) (TC 250)	TC250	€ 0.00
8	H800099784	Main shaft 4th gear (Z=23)	TC 450-510	€ 0.00
8	H8000A1326	Main shaft 4th gear (Z=23) (TC 250)	TC250	€ 0.00
9	H800063821	Bushing		€ 0.00
10	H800088255	Washer		€ 0.00
11	H8000A5723	Main shaft 2nd gear (Z=18)	TC 450-510	€ 0.00
11	H8000A1327	Main shaft 2nd gear (Z=17) (TC 250)	TC250	€ 0.00
12	H8000A5725	Layshaft assy	TC 450-510	€ 0.00
12	H8000A1329	Layshaft compl. (TC 250)	TC250	€ 0.00
13	H800099787	Layshaft	TC 450-510	€ 0.00
13	H8000A1330	Layshaft (TC 250)	TC250	€ 0.00
14	H800057196	Plug		€ 0.00
15	H8000A5724	Secondary shaft 2nd gear (Z=26)	TC450-510	€ 0.00
15	H8000A9004	DRIVEN GEAR	TC250	€ 0.00
17	H800099790	Secondary shaft 3rd gear (Z=24)	TC 450-510	€ 0.00
17	H8000A1333	Secondary shaft 3rd gear (Z=24) (TC 250)	TC250	€ 0.00
18	H8000A1914	Secondary shaft 4th gear (Z=25)	TC 450-510	€ 0.00
18	H8000A1334	Secondary shaft 4th gear (Z=25) (TC 250)	TC250	€ 0.00
19	H8000A1335	Secondary shaft 5th gear (Z=21) (TC 250)	TC250	€ 0.00
19	H8000A1915	Secondary shaft 5th gear (Z=21)	TC 450-510	€ 0.00
20	H8000A1916	Gear 1st speed (Z=28)	TC450-510	€ 57.90
20	H8000A1336	Gear 1st speed (Z=28) (TC 250)	TC250	€ 0.00
21	H800022373	Needle cage (		€ 0.00
23	H8G0007989	Washer( 1,0m m)		€ 12.30
24	H800041693	O-Ring		€ 0.20
25	H800086953	Spacer		€ 55.88
26	H66N021211	Stop ring		€ 0.00
27	H800099919	Driving shaft gearbox forks		€ 0.00
28	H8A0097739	Drum		€ 0.00
29	H800038520	Roller		€ 0.00
30	H800098149	Screw		€ 0.00
31	H8000A0091	Fork (1st-4st)		€ 0.00
32	H8000A0092	Fork (2nd-3rd)		€ 0.00
33	H800099738	Gear shift fork (MTM) (5		€ 0.00
34	H800071010	Wheel		€ 0.00
35	H800038711	Pin (L=96 mm)		€ 0.00
36	H800038712	Pin (L=57 mm)		€ 0.00
37	H800087299	Sprocket		€ 0.00
38	H800071007	Click		€ 0.00
39	H800071008	Push rod		€ 0.00
40	H800071009	Spring		€ 0.00
41	H800071010	Wheel		€ 0.00
42	H800099739	Plate		€ 0.00
43	HZ00062726	SCREW TEF M6X1X14 CH8		€ 1.10
44	H800085495	Click		€ 0.00
45	H8000A1748	Spring		€ 0.00
46	H800086107	Washer		€ 0.00
47	H800085493	Bushing		€ 0.00
48	HZ00062726	SCREW TEF M6X1X14 CH8		€ 1.10
49	H800091559	Gearbox pedal shaft assy		€ 0.00
51	H800072826	Spring		€ 0.00
52	H8000A4511	Idle trasponder assy		€ 0.00
53	H8A0042700	O-Ring		€ 0.00
54	H800042676	Push rod		€ 0.00
55	H800042677	Spring		€ 0.00
56	HZ00067997	SCREW TEF M5X0.8X12 CH8		€ 0.00
57	H8000A3488	PEDAL, GEAR CHANGE		€ 54.40
58	H8000A3485	Pedal		€ 0.00
58	H8A00A3485	ARM, GEAR SHIFT LEVER		€ 0.00
59	H800070216	Spring		€ 0.00
60	H800099744	RIVET 6X22 UNI 748		€ 0.00
61	HZ00062728	Screw, M6-L20		€ 0.20
62	H800063827	Pinion Z=12 (TE-TXC)	250	€ 0.00
62	H800063828	Pinion Z=13 (TE-TXC)		€ 0.00
62	H800063831	Pinion (Z = 16)		€ 0.00
62	H800063829	Pinion (Z = 14)	450-510	€ 0.00
62	H800063830	Pinion ( Z = 15)		€ 0.00
63	H8000A1328	Spacer (TC 250)	TC250	€ 0.00
16	H66N021211	Stop ring		€ 0.00
22	H8G0007989	Washer( 1,0m m)		€ 12.30

Add to basket
H8000A5721	Main shaft assy	€ 0.00
H8000A1322	Main shaft (TC 250)	€ 0.00

Add to basket
H8000A1323	SHAFT-TRANSMISSION INPUT,15T	€ 0.00
H8000A4244	Main shaft (Z=15)	€ 0.00

Add to basket
H800099782	GEAR DRIVE 5TH SPEED T22	€ 0.00
H8000A1324	Gear speed (Z=22) (TC 250)	€ 0.00

Add to basket
H800063822	BUSH	€ 0.00

Add to basket
H8D0036022	THRUST WASHER 32X25.1X0.5 MM	€ 0.00

Add to basket
H800031772	Stop ring	€ 7.00

Add to basket
H800099783	MAIN GEAR 3RD SPEED T19	€ 0.00
H8000A1325	Main shaft 3rd gear (Z=19) (TC 250)	€ 0.00

Add to basket
H800099784	GEAR DRIVE 4TH SPEED T23	€ 0.00
H8000A1326	Main shaft 4th gear (Z=23) (TC 250)	€ 0.00

Add to basket
H800063821	BUSH	€ 0.00

Add to basket
H800088255	WASHER, THRUST	€ 0.00

Add to basket
H8000A5723	GEAR DRIVE 2ND SPEED T18	€ 0.00
H8000A1327	GEAR DRIVE 2ND SPEED T17	€ 0.00

Add to basket
H8000A5725	Layshaft assy	€ 0.00
H8000A1329	Layshaft compl. (TC 250)	€ 0.00

Add to basket
H800099787	COUNTER SHAFT	€ 0.00
H8000A1330	COUNTER SHAFT	€ 0.00

Add to basket
H800057196	PLUG 12X6X10	€ 0.00

Add to basket
H8000A5724	Secondary shaft 2nd gear (Z=26)	€ 0.00
H8000A9004	DRIVEN GEAR	€ 0.00

Add to basket
H800099790	DRIVEN GEAR 3TH SPEED T24	€ 0.00
H8000A1333	Secondary shaft 3rd gear (Z=24) (TC 250)	€ 0.00

Add to basket
H8000A1914	DRIVEN GEAR 4TH SPEED T25	€ 0.00
H8000A1334	DRIVEN GEAR 4TH SPEED T25	€ 0.00

Add to basket
H8000A1335	Secondary shaft 5th gear (Z=21) (TC 250)	€ 0.00
H8000A1915	Secondary shaft 5th gear (Z=21)	€ 0.00

Add to basket
H8000A1916	DRIVEN GEAR 1ST SPEED T28	€ 57.90
H8000A1336	DRIVEN GEAR 1ST SPEED T28	€ 0.00

Add to basket
H800022373	BEARING, NEEDLE 20X24X10	€ 0.00

Add to basket
H8G0007989	WASHER 28X20X1	€ 12.30

Add to basket
H800041693	O-RING 21.95X1.78	€ 0.20

Add to basket
H800086953	SPACER	€ 55.88

Add to basket
H66N021211	CIRCLIP 25MM DIN471	€ 0.00

Add to basket
H800099919	DRUM, GEARSHIFT	€ 0.00

Add to basket
H8A0097739	CAM-CHANGE DRUM	€ 0.00

Add to basket
H800038520	ROLLER, 4X8	€ 0.00

Add to basket
H800098149	SCREW	€ 0.00

Add to basket
H8000A0091	Fork (1st-4st)	€ 0.00

Add to basket
H8000A0092	SHIFT FORK 2-3	€ 0.00

Add to basket
H800099738	SHIFT FORK 5-6	€ 0.00

Add to basket
H800071010	ROLLER	€ 0.00

Add to basket
H800038711	BAR, SHIFT FORK GUIDE 96 MM	€ 0.00

Add to basket
H800038712	BAR, SHIFT FORK GUIDE 57.5 MM	€ 0.00

Add to basket
H800087299	Sprocket	€ 0.00

Add to basket
H800071007	PAWL	€ 0.00

Add to basket
H800071008	PUSH ROD	€ 0.00

Add to basket
H800071009	SPRING	€ 0.00

Add to basket
H800071010	ROLLER	€ 0.00

Add to basket
H800099739	PLATE	€ 0.00

Add to basket
HZ00062726	SCREW	€ 1.10

Add to basket
H800085495	STOPPER LEVER ASSY	€ 0.00

Add to basket
H8000A1748	SPRING	€ 0.00

Add to basket
H800086107	Washer	€ 0.00

Add to basket
H800085493	BUSH	€ 0.00

Add to basket
HZ00062726	SCREW	€ 1.10

Add to basket
H800091559	SHAFT, GEAR SHIFT	€ 0.00

Add to basket
H800072826	SPRING, GEARSHIFT RETURN	€ 0.00

Add to basket
H8000A3488	PEDAL, GEAR CHANGE	€ 54.40

Add to basket
H8000A3485	ARM	€ 0.00
H8A00A3485	ARM, GEAR SHIFT LEVER	€ 0.00

Add to basket
HZ00062728	SCREW TEF M6X1-CH8-L20	€ 0.20

Add to basket
H800063827	Pinion Z=12 (TE-TXC)	€ 0.00
H800063828	SPROCKET 13T	€ 0.00
H800063831	SPROKET DRIVE 16T	€ 0.00
H800063829	SPROCKET Z14	€ 0.00
H800063830	CHAIN SPROCKET Z15	€ 0.00

Add to basket
H8G0007989	WASHER 28X20X1	€ 12.30

Add to claim
H8000A5721	Main shaft assy	€0.00
H8000A1322	Main shaft (TC 250)	€0.00

Add to claim
H8000A1323	SHAFT-TRANSMISSION INPUT,15T	€0.00
H8000A4244	Main shaft (Z=15)	€0.00

Add to claim
H800099782	GEAR DRIVE 5TH SPEED T22	€0.00
H8000A1324	Gear speed (Z=22) (TC 250)	€0.00

Add to claim
H800099783	MAIN GEAR 3RD SPEED T19	€0.00
H8000A1325	Main shaft 3rd gear (Z=19) (TC 250)	€0.00

Add to claim
H800099784	GEAR DRIVE 4TH SPEED T23	€0.00
H8000A1326	Main shaft 4th gear (Z=23) (TC 250)	€0.00

Add to claim
H8000A5723	GEAR DRIVE 2ND SPEED T18	€0.00
H8000A1327	GEAR DRIVE 2ND SPEED T17	€0.00

Add to claim
H8000A5725	Layshaft assy	€0.00
H8000A1329	Layshaft compl. (TC 250)	€0.00

Add to claim
H800099787	COUNTER SHAFT	€0.00
H8000A1330	COUNTER SHAFT	€0.00

Add to claim
H8000A5724	Secondary shaft 2nd gear (Z=26)	€0.00
H8000A9004	DRIVEN GEAR	€0.00

Add to claim
H800099790	DRIVEN GEAR 3TH SPEED T24	€0.00
H8000A1333	Secondary shaft 3rd gear (Z=24) (TC 250)	€0.00

Add to claim
H8000A1914	DRIVEN GEAR 4TH SPEED T25	€0.00
H8000A1334	DRIVEN GEAR 4TH SPEED T25	€0.00

Add to claim
H8000A1335	Secondary shaft 5th gear (Z=21) (TC 250)	€0.00
H8000A1915	Secondary shaft 5th gear (Z=21)	€0.00

Add to claim
H8000A1916	DRIVEN GEAR 1ST SPEED T28	€57.90
H8000A1336	DRIVEN GEAR 1ST SPEED T28	€0.00

Add to claim
H8000A3485	ARM	€0.00
H8A00A3485	ARM, GEAR SHIFT LEVER	€0.00

Add to claim
H800063827	Pinion Z=12 (TE-TXC)	€0.00
H800063828	SPROCKET 13T	€0.00
H800063831	SPROKET DRIVE 16T	€0.00
H800063829	SPROCKET Z14	€0.00
H800063830	CHAIN SPROCKET Z15	€0.00
