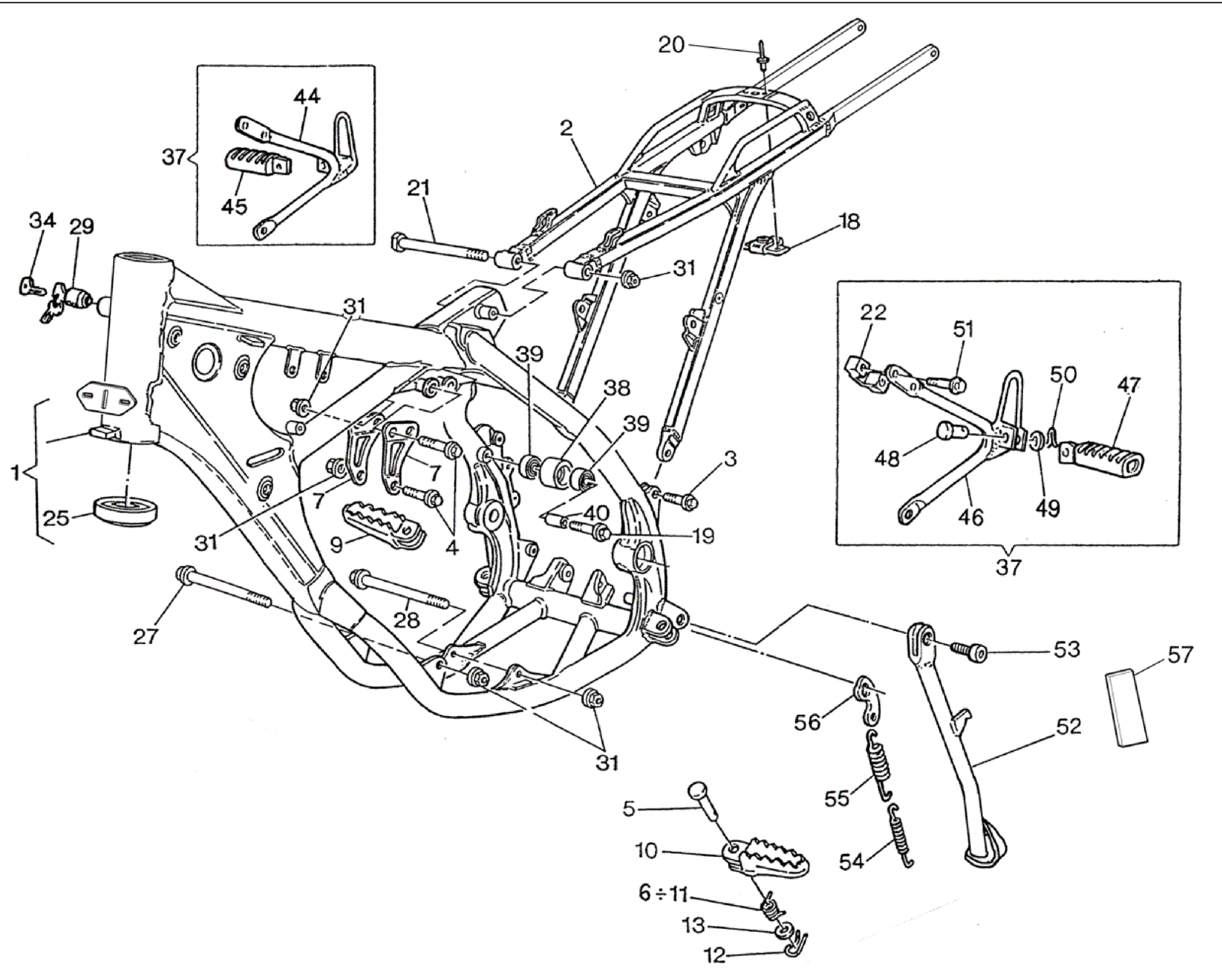

No. Code Name Reference Price
No. Code Name reference Price
1 8A00B0513 Frame front side assy WR 0.00
1 8C00B0513 Frame front side assy USA 0.00
1 8C00A8027 Frame front side assy CR 1234.18
2 8000A4098 Rear frame side 0.00
3 Z00069056 SCREW TEF M8X1.25X20 CH12 0.81
4 Z00062795 SCREW TEF M8X1.25X50 CH12 1.15
5 Y00073140 PIN, FOOTREST 2.53
6 800096907 L.H. spring 1.50
7 800073830 Plate 0.00
9 80A089953 R.H. foot-rest 46.92
10 80A089962 L.H. foot-rest 46.92
11 800096908 R.H. spring 1.50
12 64ND20068 PIN, COTTER 1.8X18 0.58
13 ZA0001815 WASHER 16X10.5X1 0.12
18 800069150 Plate 5.52
19 Z00062796 SCREW TEF M8X1.25X40 CH12 1.04
20 800033373 Rivet 0.23
21 Y00069111 Screw (M8x130 mm) 9.09
22 800071091 U-bolt WR 21.97
25 800087243 CONICAL ROLLERS BEARING 12.54
27 YN0073458 SCREW TEF M8X1.25X120 3.80
28 YP0073458 Pin 4.14
29 800043391 Anti-left lock assy WR 11.04
31 Y00043928 NUT, SELF LOCKING M8X1.25 1.04
34 800035531 Raw key WR 2.88
37 8C0071086 Compl. footrest Kit ( WR 128.34
38 800059433 Roller 3.68
39 800063312 Bearing(ø8xØ22x7mm) 11.73
40 8000H3010 Spacer 0.58
44 80A071088 R.H. support ( WR 51.06
45 800066652 R.H. foot rest support WR 9.20
46 8AA071087 L.H. support ( WR 51.06
47 800066651 L.H. foot rest support WR 9.20
48 800041459 Pin WR 6.67
49 62ND15504 WASHER 12X6.4X1 WR 0.12
50 64ND20048 PIN, COTTER 1.3X12 WR 1.27
51 Z00062732 Screw WR 0.81
51 Z00069056 SCREW TEF M8X1.25X20 CH12 WR 0.81
52 80A098040 Side stand WR 0.00
53 800097976 SCREW M8X1.25X25 WR 4.26
53 8A0097977 Screw (M8x225 mm) USA 7.94
54 800062676 Spring WR 9.43
55 800062675 Spring WR 4.72
56 800084176 Plate WR 2.53
57 947200056 CUSHION, STAND STOPPER 30.59
Add to basket
8A00B0513 FRAME €0.00
8C00B0513 Frame front side assy €0.00
8C00A8027 Frame front side assy €1234.18
Add to basket
8000A4098 REAR FRAME €0.00
Add to basket
Z00069056 SCREW TEF M8X1.25X20 CH12 €0.81
Add to basket
Z00062795 SCREW TEF M8X1.25X50 CH12 €1.15
Add to basket
Y00073140 PIN, FOOTREST €2.53
Add to basket
800096907 L.H. spring €1.50
Add to basket
800073830 PLATE, ENGINE MOUNT €0.00
Add to basket
80A089953 R.H. foot-rest €46.92
Add to basket
80A089962 L.H. foot-rest €46.92
Add to basket
800096908 R.H. spring €1.50
Add to basket
64ND20068 PIN, COTTER 1.8X18 €0.58
Add to basket
ZA0001815 WASHER 16X10.5X1 €0.12
Add to basket
800069150 Plate €5.52
Add to basket
Z00062796 SCREW TEF M8X1.25X40 CH12 €1.04
Add to basket
800033373 Rivet €0.23
Add to basket
Y00069111 Screw (M8x130 mm) €9.09
Add to basket
800071091 U-bolt €21.97
Add to basket
800087243 CONICAL ROLLERS BEARING €12.54
Add to basket
YN0073458 SCREW TEF M8X1.25X120 €3.80
Add to basket
YP0073458 Pin €4.14
Add to basket
800043391 Anti-left lock assy €11.04
Add to basket
Y00043928 NUT, SELF LOCKING M8X1.25 €1.04
Add to basket
800035531 Raw key €2.88
Add to basket
8C0071086 Compl. footrest Kit ( €128.34
Add to basket
800059433 Roller €3.68
Add to basket
800063312 Bearing(ø8xØ22x7mm) €11.73
Add to basket
8000H3010 Spacer €0.58
Add to basket
80A071088 R.H. support ( €51.06
Add to basket
800066652 R.H. foot rest support €9.20
Add to basket
8AA071087 L.H. support ( €51.06
Add to basket
800066651 L.H. foot rest support €9.20
Add to basket
800041459 Pin €6.67
Add to basket
62ND15504 WASHER 12X6.4X1 €0.12
Add to basket
64ND20048 PIN, COTTER 1.3X12 €1.27
Add to basket
Z00062732 Screw €0.81
Z00069056 SCREW TEF M8X1.25X20 CH12 €0.81
Add to basket
80A098040 STAND, SIDE €0.00
Add to basket
800097976 SCREW M8X1.25X25 €4.26
8A0097977 Screw (M8x225 mm) €7.94
Add to basket
800062676 Spring €9.43
Add to basket
800062675 Spring €4.72
Add to basket
800084176 Plate €2.53
Add to basket
947200056 CUSHION, STAND STOPPER €30.59
