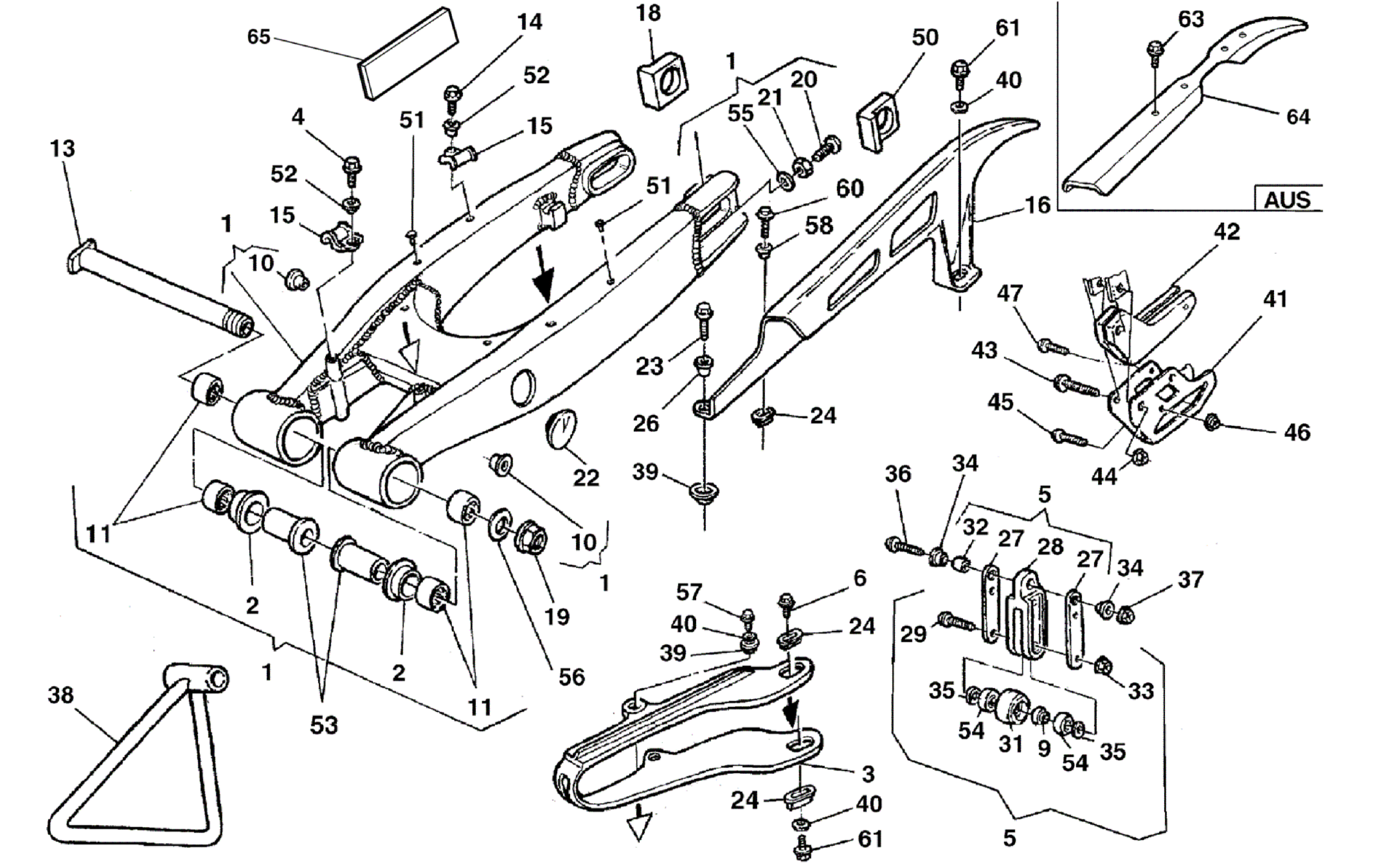

| 1 |
8A00A5882
|
Swing arm assy.
|
€0.00 |
|
| 2 |
Z00071622
|
BUSH 36X28X23 H6
|
€4.14 |
|
| 3 |
800096960
|
Chain slider
|
€10.81 |
|
| 4 |
Z00067997
|
SCREW TEF M5X0.8X12 CH8
|
€0.12 |
|
| 5 |
800072873
|
Chain guide
|
€36.11 |
|
| 6 |
Z00020536
|
Screw
|
€0.23 |
|
| 6 |
Z00067997
|
SCREW TEF M5X0.8X12 CH8
|
€0.12 |
|
| 9 |
8000H3012
|
Spacer
|
€0.58 |
|
| 10 |
8A0087810
|
Bushing
|
€5.06 |
|
| 11 |
800076283
|
Needle cage (ø22xø28x18mm)
|
€11.16 |
|
| 13 |
800071620
|
Fork pin
|
€67.28 |
|
| 14 |
Z00020536
|
Screw
|
€0.23 |
|
| 15 |
800073456
|
GUIDE, CABLE
|
€1.73 |
|
| 15 |
80A073456
|
Cable guide
|
€1.96 |
|
| 16 |
80B073909
|
Chain guard
|
€0.00 |
|
| 18 |
800096944
|
Chain adjuster - nut side
|
€7.82 |
|
| 19 |
Z00071623
|
NUT FLANGE M16X1.5
|
€3.11 |
|
| 20 |
ZC0061121
|
SCREW TE M8X1.25
|
€0.69 |
|
| 21 |
Z00017810
|
NUT M8X1.25 H8 CH12
|
€0.81 |
|
| 22 |
80A074388
|
Plug
|
€2.30 |
|
| 23 |
ZA0067997
|
SCREW TEF M5X0.8X16 CH8
|
€0.12 |
|
| 24 |
8000H3033
|
CUP
|
€0.92 |
|
| 26 |
8A0069282
|
Bushing
|
€0.92 |
|
| 27 |
800072875
|
Chain guide (XBR)
|
€6.10 |
|
| 28 |
800072874
|
Plate
|
€8.74 |
|
| 29 |
Z00062731
|
Flange bolt
|
€0.23 |
|
| 31 |
800065411
|
Roller
|
€4.26 |
|
| 32 |
151550601
|
Bushing
|
€11.27 |
|
| 33 |
Z00044240
|
NUT, SELF LOCKING M6X1 CH10
|
€0.69 |
|
| 34 |
8A00H3019
|
SPACER D20-D12-D8,5
|
€0.69 |
|
| 35 |
8000H3017
|
BUSH 14X8X6.25 H4
|
€0.58 |
|
| 36 |
Z00062795
|
SCREW TEF M8X1.25X50 CH12
|
€1.15 |
|
| 37 |
Y00043928
|
NUT, SELF LOCKING M8X1.25
|
€1.04 |
|
| 38 |
800074016
|
STAND
|
€0.00 |
|
| 39 |
8000H3034
|
CUP
|
€0.58 |
|
| 40 |
Z00036137
|
WASHER 11X5.5X1.5 MM
|
€0.12 |
|
| 41 |
800072869
|
Bracket
|
€13.57 |
|
| 42 |
8000H7668
|
GUIDE, CHAIN
|
€36.80 |
|
| 43 |
Z00062795
|
SCREW TEF M8X1.25X50 CH12
|
€1.15 |
|
| 44 |
Y00043928
|
NUT, SELF LOCKING M8X1.25
|
€1.04 |
|
| 45 |
Z00062731
|
Flange bolt
|
€0.23 |
|
| 46 |
Z00044240
|
NUT, SELF LOCKING M6X1 CH10
|
€0.69 |
|
| 47 |
Z00062725
|
SCREW TEF M6X1.00X10 CH8
|
€0.12 |
|
| 50 |
800096941
|
Chain adjuster - pin side
|
€13.00 |
|
| 51 |
800075160
|
Rivet
|
€0.23 |
|
| 52 |
800069282
|
Bushing
|
€0.92 |
|
| 53 |
800071621
|
Bushing
|
€13.69 |
|
| 54 |
800063312
|
Bearing(ø8xØ22x7mm)
|
€11.73 |
|
| 55 |
Z00008536
|
WASHER 13X8.4X2
|
€0.23 |
|
| 57 |
Z00067997
|
SCREW TEF M5X0.8X12 CH8
|
€0.12 |
|
| 56 |
800032388
|
Washer
|
€3.45 |
|
| 58 |
800097025
|
Spacer
|
€2.88 |
|
| 60 |
60ND01059
|
SCREW
|
€0.23 |
|
| 61 |
Z00020536
|
Screw
|
€0.23 |
|
| 63 |
Z00081628
|
SCREW SELF-TAPPING AB 2.9X6.5
|
€0.23 |
|
| 64 |
8000A2352
|
Guard(AUS)
|
€9.55 |
|
| 65 |
800073832
|
Reflector (AUS, CDN)
|
€2.76 |
|
