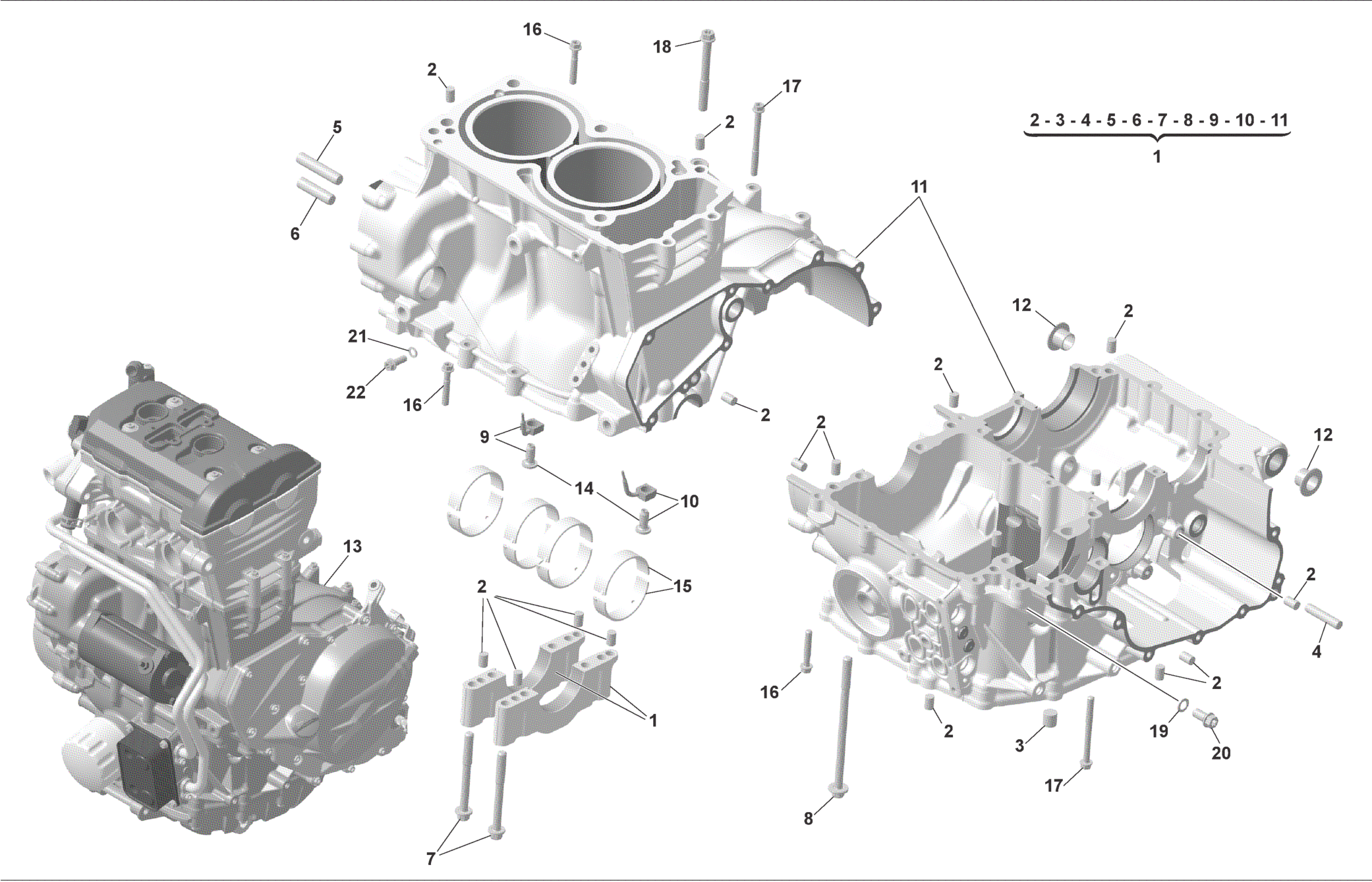

1 12 2 2 2 2 2 2 2 2 2 17 16 16 1 2 3 4 5 6 7 8 9 10 12 13 13 14 15 16 17 18 19 20 21 22

Products

* All prices are excl. VAT
Value in currencies other than in Euro (€) are only an indication.

No. Code Name Price
No. Code Name Price
1 H8524132 CRANKCASE SET € 899.99
12 H2343013 BUSH € 0.00
2 H2343233 PIN, DOWEL 8X12 DIN 5402 € 0.00
17 H7690495 TORX-FLANGE SCREW € 1.30
16 H7707433 TORX-FLANGE SCREW M6X35-SW8/T30 € 0.77
3 H7699125 PIN, DOWEL 12X12 DIN 5402 € 0.00
4 H7690503 PIN, DOWEL 6X40 € 0.00
5 H2343234 PIN, DOWEL 6X50 € 0.00
6 H7690433 AXLE, IDLE GEAR 6X40 € 0.00
7 H7690506 FLANGE SCREW M8X77 € 2.10
8 H7690507 FLANGE SCREW M8X130 € 4.10
9 H8523351 NOZZLE, OIL SPRAY GENERATOR SIDE € 0.00
10 H8523350 NOZZLE, OIL SPRAY CRANKSHAFT SIDE € 0.00
13 HU8524896 REPLACEMENT NUDA ENGINE TYPE 904 (USED) (Price on request) € 3000.00
13 H8524896 REPLACEMENT ENGINE TYPE 904 € 7820.34
14 H8524134 BANJO BOLT M8X1 € 0.00
15 H7690499 PLANE BEARING, CRANKSHAFT € 0.00
18 H7690508 TORX-FLANGE SCREW € 1.98
19 H2343010 SEALING RING A 8X13 DIN 7603 € 0.00
20 H7699121 TORX-FLANGE SCREW € 0.99
21 H2343240 SEALING RING A 6X10 DIN 7603 € 0.60
22 H7690404 TORX-FLANGE SCREW M6X16-SW8/T30 € 0.00
Add to basket
H8524132 CRANKCASE ASSY. € 899.99
Add to basket
H2343013 BUSH € 0.00
Add to basket
H2343233 PIN, DOWEL 8X12 DIN 5402 € 0.00
Add to basket
H7690495 HEX./TORX-FLANGE SCREW M6X65-S € 1.30
Add to basket
H7707433 TORX-FLANGE SCREW M6X35-SW8/T30 € 0.77
Add to basket
H7699125 PIN 12X12 DIN 5402 € 0.00
Add to basket
H7690503 LOCATING PIN 8 SMALL M6X40 € 0.00
Add to basket
H2343234 PIN, DOWEL 6X50 € 0.00
Add to basket
H7690433 LOCATION PIN 10 M6X40 € 0.00
Add to basket
H7690506 FLANGE SCREW M8X77 € 2.10
Add to basket
H7690507 SK-FLANGE SCREW M8X130 € 4.10
Add to basket
H8523351 NOZZLE, OIL SPRAY GENERATOR SIDE € 0.00
Add to basket
H8523350 NOZZLE, OIL SPRAY CRANKSHAFT SIDE € 0.00
Add to basket
HU8524896 REPLACEMENT NUDA ENGINE TYPE 904 (USED) (Price on request) € 3000.00
H8524896 REPLACEMENT ENGINE TYPE 904 € 7820.34
Add to basket
H8524134 BANJO BOLT M8X1 € 0.00
Add to basket
H7690499 PLAIN BEARING HALF 50X54X14 € 0.00
Add to basket
H7690508 TORX-FLANGE SCREW € 1.98
Add to basket
H2343010 SEALING RING A 8X13 DIN 7603 € 0.00
Add to basket
H7699121 HEX./TORX-FLANGE SCREW M8X16-S € 0.99
Add to basket
H2343240 SEALING RING A 6X10 DIN 7603 € 0.60
Add to basket
H7690404 HEX./TORX-FLANGE SCREW M6X16-S € 0.00
Add to claim
H8524132 CRANKCASE ASSY. €899.99
Add to claim
H2343013 BUSH €0.00
Add to claim
H2343233 PIN, DOWEL 8X12 DIN 5402 €0.00
Add to claim
H7690495 HEX./TORX-FLANGE SCREW M6X65-S €1.30
Add to claim
H7707433 TORX-FLANGE SCREW M6X35-SW8/T30 €0.77
Add to claim
H7699125 PIN 12X12 DIN 5402 €0.00
Add to claim
H7690503 LOCATING PIN 8 SMALL M6X40 €0.00
Add to claim
H2343234 PIN, DOWEL 6X50 €0.00
Add to claim
H7690433 LOCATION PIN 10 M6X40 €0.00
Add to claim
H7690506 FLANGE SCREW M8X77 €2.10
Add to claim
H7690507 SK-FLANGE SCREW M8X130 €4.10
Add to claim
H8523351 NOZZLE, OIL SPRAY GENERATOR SIDE €0.00
Add to claim
H8523350 NOZZLE, OIL SPRAY CRANKSHAFT SIDE €0.00
Add to claim
HU8524896 REPLACEMENT NUDA ENGINE TYPE 904 (USED) (Price on request) €3000.00
H8524896 REPLACEMENT ENGINE TYPE 904 €7820.34
Add to claim
H8524134 BANJO BOLT M8X1 €0.00
Add to claim
H7690499 PLAIN BEARING HALF 50X54X14 €0.00
Add to claim
H7690508 TORX-FLANGE SCREW €1.98
Add to claim
H2343010 SEALING RING A 8X13 DIN 7603 €0.00
Add to claim
H7699121 HEX./TORX-FLANGE SCREW M8X16-S €0.99
Add to claim
H2343240 SEALING RING A 6X10 DIN 7603 €0.60
Add to claim
H7690404 HEX./TORX-FLANGE SCREW M6X16-S €0.00
