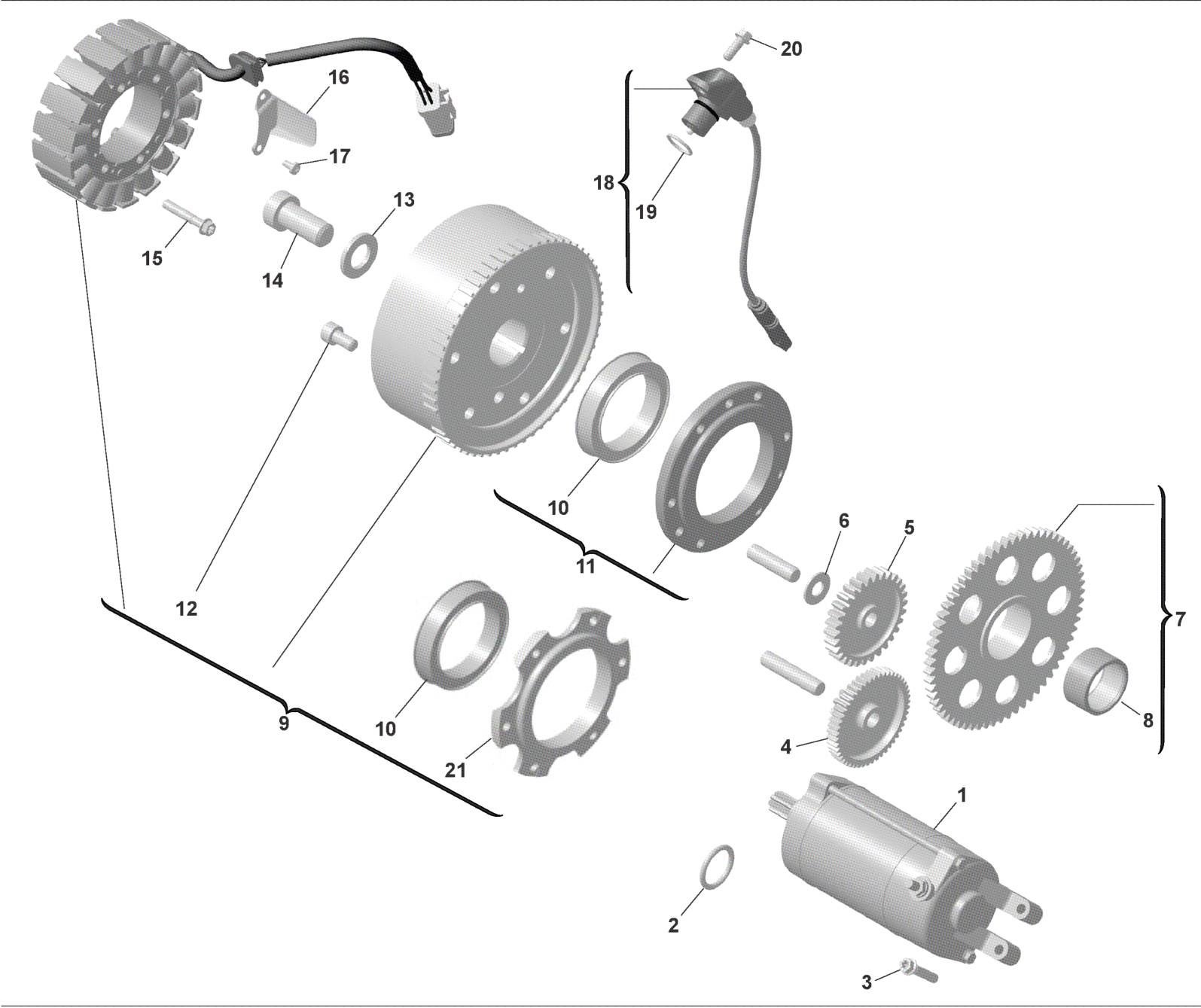

| 1 |
7709449
|
STARTING MOTOR
|
|
€299.46 |
|
| 2 |
2343252
|
O-RING DIN 3771-24.4X3.1-N, NBR70
|
|
€1.50 |
|
| 3 |
7706514
|
TORX-FLANGE SCREW M6X30-SW8/T30
|
|
€0.69 |
|
| 4 |
7690437
|
STARTER DOUBLE GEAR T11/49
|
|
€69.81 |
|
| 5 |
7695827
|
GEAR, IDLE STARTER T30
|
|
€36.46 |
|
| 6 |
7722176
|
THRUST WASHER 10X22X1.5
|
|
€1.27 |
|
| 7 |
7702428
|
GEAR, STARTER T64
|
|
€74.64 |
|
| 8 |
7689493
|
BEARING, NEEDLE 31.75X38.1X19.05
|
|
€13.92 |
|
| 9 |
7690427
|
GENERATOR
|
MOTORE <08251366 |
€514.63 |
|
| 9 |
8524422
|
GENERATOR
|
MOTORE 08251367> |
€553.15 |
|
| 10 |
7687777
|
SPRAG CLUTCH 51.710X68.377X13
|
|
€79.35 |
|
| 11 |
7652871
|
FLANGE STARTING CLUTCH, REPLACED BY 7687777 & 8524427
|
MOTORE <08251366 |
€146.63 |
|
| 12 |
9903753
|
BOLT, SOCKET HEAD M8X1.25X16 DIN 912
|
MOTORE 08251367> |
€0.46 |
|
| 13 |
7690432
|
SHIM A17 DIN 125
|
|
€2.07 |
|
| 14 |
7704757
|
ALLEN SCREW M16X35 DIN 6912
|
|
€2.76 |
|
| 15 |
7707433
|
TORX-FLANGE SCREW M6X35-SW8/T30
|
|
€0.81 |
|
| 16 |
7707215
|
PLATE, RETAINER
|
|
€7.25 |
|
| 17 |
2343133
|
TAPTITE-SCREW M4X8
|
|
€0.58 |
|
| 18 |
7674201
|
SENSOR, CRANK POSITION
|
|
€70.73 |
|
| 19 |
7694011
|
O-RING 14X2 FPM 70
|
|
€9.55 |
|
| 20 |
7690404
|
TORX-FLANGE SCREW M6X16-SW8/T30
|
|
€0.69 |
|
| 21 |
8524427
|
FLANGE
|
MOTORE 08251367> |
€60.15 |
|
